Ф8.6 Children Test Finger Probe 18

Name: Ф86 Children Test Finger Probe 18
Brand: HeJin
Price: 1 USD

Ф8.6 Children Test Finger Probe 18 Manufactures

Brand Name : HeJin

Model Number : HT-I12

Certification : calibration certificate (cost additional)

Place of Origin : China

MOQ : 1 set

Price : Negotiatable

Payment Terms : L/C, T/T

Supply Ability : 30 sets / per month

Delivery Time : 3 days

Packaging Details : Cartoon Box

Product name : Children Finger Probe HT-I12

Handle length : 451.6±0.8

Finger probe length : 57.9±0.15

Standard : IEC 61032

Material : metal wire + Nylon handle

application : test finger probe. test probe 18(small finger probe Ф8.6)

Finger probe diameter : Ф8.6±0.1

Hemispherical : R4.3±0.05

Contact Now

IEC61032 Test Finger Probe Children Test Probe 18 Small Finger Probe Ф8.6

Standard:

IEC61032 Protection of persons and equipment by enclosures - Probes for verification figure 12 finger probe 18.

IEC60335-1 Safety of Household and Similar Electrical Appliances Part 1: General Requirements.

UL1017 Standard for safety vacuum cleaners,blower cleaners,and household floor finishing machines.

Application:

It is used to simulate the children who are older than 36 months and younger than 14 years to test whether the hazardous parts can be touched.

Test sample:

Easily accessible enclosure live parts or mechanical parts.

Feature:

Can be combined with the push-pull gauge to achieve force of 10N load test.

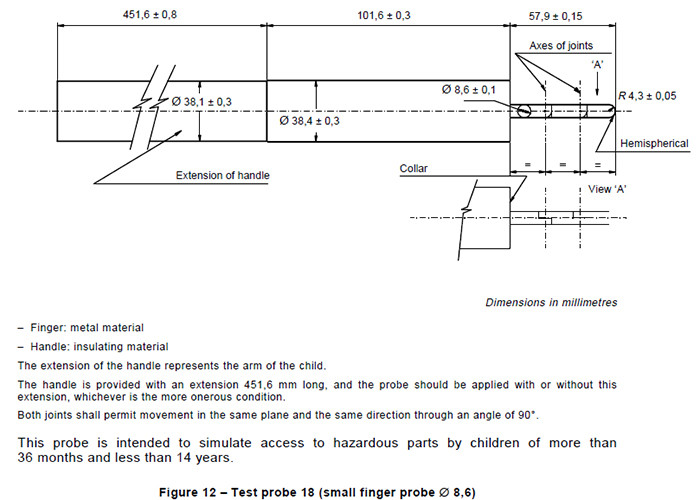

Parameters:

Name/Model	Children Finger Probe 18 /HT-I12
Hemispherical	R4.3±0.05
Finger probe diameter	Ф8.6±0.1
Finger probe length	57.9±0.15
Joint distance	19.3
Axes of joints diameter	Ф38.4±0.3
Axes of joints length	101.6±0.3
Handle diameter	Ф38.1±0.3
Handle length	451.6±0.8
